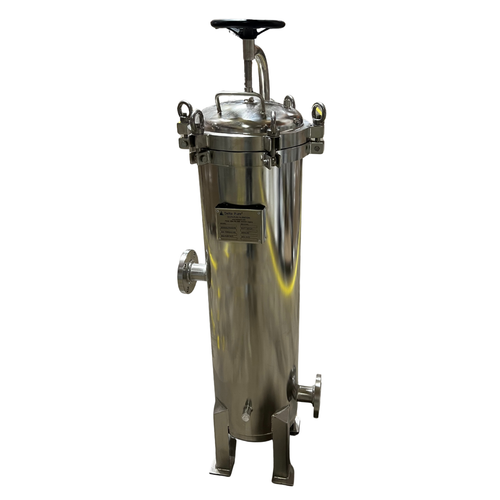

EXCLUSIVE! FFH Series Stainless Big Blue Multi Cartridge Housing, 30 in Filter Length, 4.5 in Dia, 2 in Ports

Midwest Filter Exclusive

$1,237.15
SKU:
FFH3-SB-4-2F
Availability:
In stock
Short Description:
Vessel
Material:
Stainless steel
Size:
4.5 inch diameter Big Blue
Filter Length:
30 inches
Port Size:
2 inch flanged
Specification:
FFH3 Spec Sheet

Adding to cart… The item has been added

EXCLUSIVE! Our economical FFH3-SB-4-2F multi-cartridge housing is built of durable 304 stainless steel, offering exceptional corrosion resistance and a long service life. Its compact design saves valuable floor space while delivering high-capacity filtration for a wide range of applications.

The FFH3-SB-4-2F is engineered to accept three (3) Big Blue (4.5-inch diameter) double open end cartridges with a 30-inch filter length. This provides extended capacity and superior flow rates compared to a typical 10-inch or 20-inch Big Blue system. Cartridge change-outs are simplified thanks to its easy-to-use top load, swing-bolt style closure with davit arm and a reliable silicone O-ring seal.

Specifications:

  • Construction: 304 stainless steel
  • Ports: 2 inch flanged inlet and outlet ports
  • Vent/Gauge Port: 1/4 inch FNPT top
  • Drain Ports: (2) 1/2 inch FNPT
  • Spring assisted cartridge installation
  • Integrated supports
  • Maximum Pressure: 150 PSIG / 10 Bar
  • Maximum Temperature: 302° F / 150° C
  • Piping and shut-off valves are by others

Compatible string wound, melt blown, and carbon DOE cartridges are sold separately; see related products below.

This versatile filter housing is an excellent choice for a wide range of commercial and industrial applications, including:

  • Process and cooling water
  • Pre-filtration for reverse osmosis (RO) systems
  • Skid-mounted systems
  • Chemical applications
  • Food and beverage operations

These unique, economical housings are available at a special limited time introductory price while supplies last.
