EXCLUSIVE! FFH Series Stainless Big Blue Cartridge Housing, 30 in Filter Length, 4.5 in Dia, 1.5 in Ports

Midwest Filter Exclusive

$479.00
SKU:
FFH-SB-4-1.5F
Availability:
In stock
Short Description:
Vessel
Material:
Stainless steel
Size:
4.5 inch diameter Big Blue
Filter Length:
30 inches
Port Size:
1.5 inch flanged
Specification:
FFH Spec Sheet

Adding to cart… The item has been added

EXCLUSIVE!: Our economical FFH-SB-4-1.5F single cartridge housing is built with 304 stainless steel, offering exceptional durability and corrosion resistance. Its compact, lightweight design makes it incredibly easy to move, perfect for portable filtration needs.

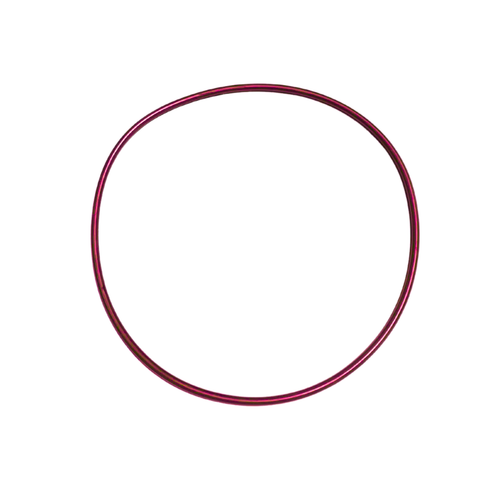

The FFH-SB-4-1.5F is engineered to accept a Big Blue (4.5-inch diameter) double open end cartridge with a 30-inch filter length, providing extended capacity and superior flow rates. Cartridge change-outs are simplified thanks to its top-load, swing-bolt style closure and positive silicone O-ring seal.

Specifications:

  • Construction: 304 stainless steel
  • Ports: 1-1/2 inch flanged inlet and outlet ports
  • Vent/Gauge Port: 1/4 inch FNPT top
  • Drain Ports: (2) 1/2 inch FNPT
  • Spring assisted cartridge installation
  • Integrated supports
  • Maximum Pressure: 150 PSIG / 10 Bar
  • Maximum Temperature: 250° F / 121° C
  • Piping and shut-off valves are by others

Compatible string wound, melt blown, and carbon DOE cartridges are sold separately; see related products below.

This versatile filter housing is perfect for whole-house point-of-entry (POE) filtration in residential settings. It's also an excellent choice for a wide range of commercial and industrial applications, including:

  • Process and cooling water
  • Pre-filtration for reverse osmosis (RO) systems
  • Skid-mounted systems
  • Chemical applications
  • Food and beverage operations

This exclusive product is currently part of our LIMITED-Stock program.
