DPH Series Cartridge Filter Housing, 20 in Filter Length, 4.5 in Dia, 1 in Ports, with Pressure Relief

$75.95
SKU:
DPH-102-J-S-PR
Availability:
In stock
Short Description:
Vessel
Material:
Polypropylene
Size:
4.5 inch diameter Big Blue
Filter Length:
20 inches
NPT Port Size:
1 inch NPT
Specification:
DPH Series Data Sheet

Adding to cart… The item has been added

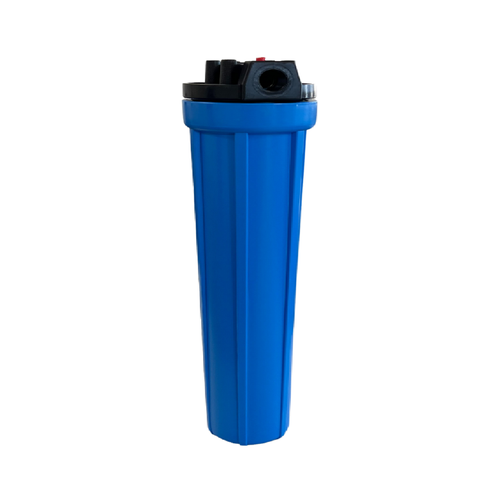

The DPH Series single element plastic filter housing is constructed of solid blue reinforced polypropylene with a polypropylene threaded cap with an O-ring seal. Each filter housing accepts one double open end (DOE) filter.

Model DPH-102-J-S-PR accepts filters with diameter 4.5” and 20 inch length.

  • Leakproof design cap with buttress threads and a Buna O-ring seal
  • Integral pressure relief valve in cap
  • 1 inch NPT inlet and outlet ports
  • 125 PSIG / 8.62 Bar maximum pressure
  • 125⁰ F / 52⁰ C maximum temperature
  • Piping and shut-off valves are by others
  • String wound, pleated, carbon, or melt blown DOE cartridges are sold separately

These economical housings are available at a special limited time introductory price while supplies last.

THESE HOUSINGS ARE FOR LIQUID SERVICE ONLY – DO NOT USE FOR PRESSURIZED GAS
